R KG 33
Turntable · CMF guideline 唱机 · CMF 设计指南
DOC文档 CMF-001 REV版本 2.0 2026·05·21
COLOR · MATERIAL · FINISH · ENGINEERING HANDOFF 颜色 · 材料 · 工艺 · 工程交付

Three plinths.
One specification language.
三款机座。
一套规范语言。

This document captures the Color, Material, and Finish specifications for the three turntable concepts — Heritage, Artisan, and Gravity. Every colorway shown in the brand renders is here with target hex, finish, gloss, application method, and hardware pairing. Where renders and copy disagreed, the renders win — and the discrepancy is flagged inline. 本文件涵盖三款唱机概念 — Heritage、Artisan、Gravity — 的颜色、材料与工艺规范。品牌渲染图中呈现的每种配色均附目标 HEX、涂装、光泽度、施工方法与配套五金。当渲染图与文字描述不一致时,以渲染图为准 — 差异均在文中标明。

Document文档
CMF-001 · Rev 2.0第 2.0 版
Issue date发布日期
2026-05-21
Source来源
Brand renders品牌渲染图
Status状态
Engineering handoff工程交付
01 · Heritage collection · MSRP $249–279 01 · Heritage 系列 · 建议零售价 $249–279

Heritage — leather-wrapped low-profile, four colorways Heritage — 皮革包覆低姿态机座,四种配色

A wrap-around PU-leather plinth on a mineral-cast core, with a single rose-gold knurled control knob centered low on the front face and a smoke-tinted acrylic dust cover. Saddle-stitch detail runs the full top perimeter as a visible craft cue. 包覆式 PU 皮革机座,矿物铸造芯材,正面中下方设置单颗玫瑰金滚花控制旋钮,搭配烟灰色透明亚克力防尘罩。机座顶部全周可见马鞍式缝线作为工艺细节。

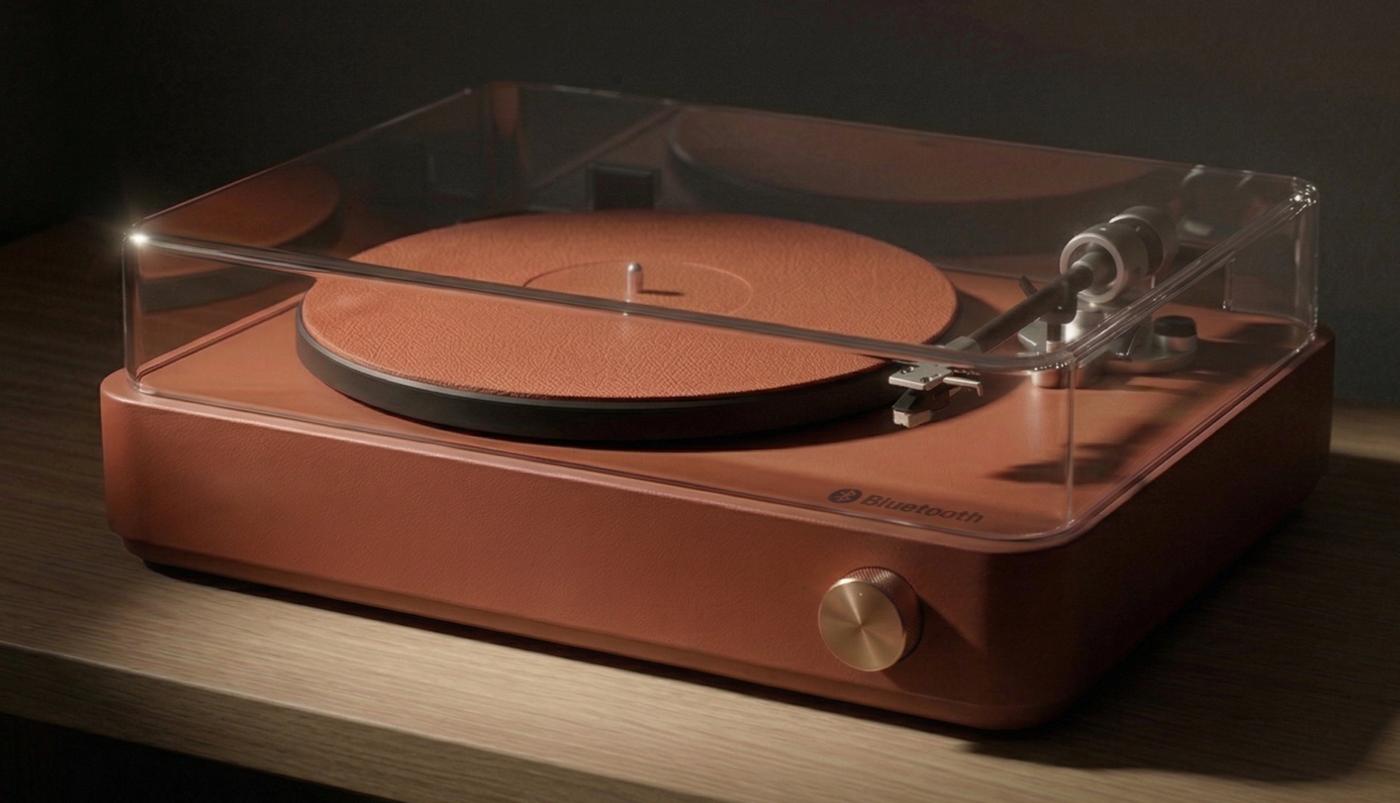

Heritage Terracotta hero
Persona用户画像
Digital Detoxer · 22–32数字断舍离 · 22–32 岁
Drive驱动
Belt皮带传动
Cartridge唱头
MM (AT-VM95)
Auto自动操作
Full auto-return全自动回臂

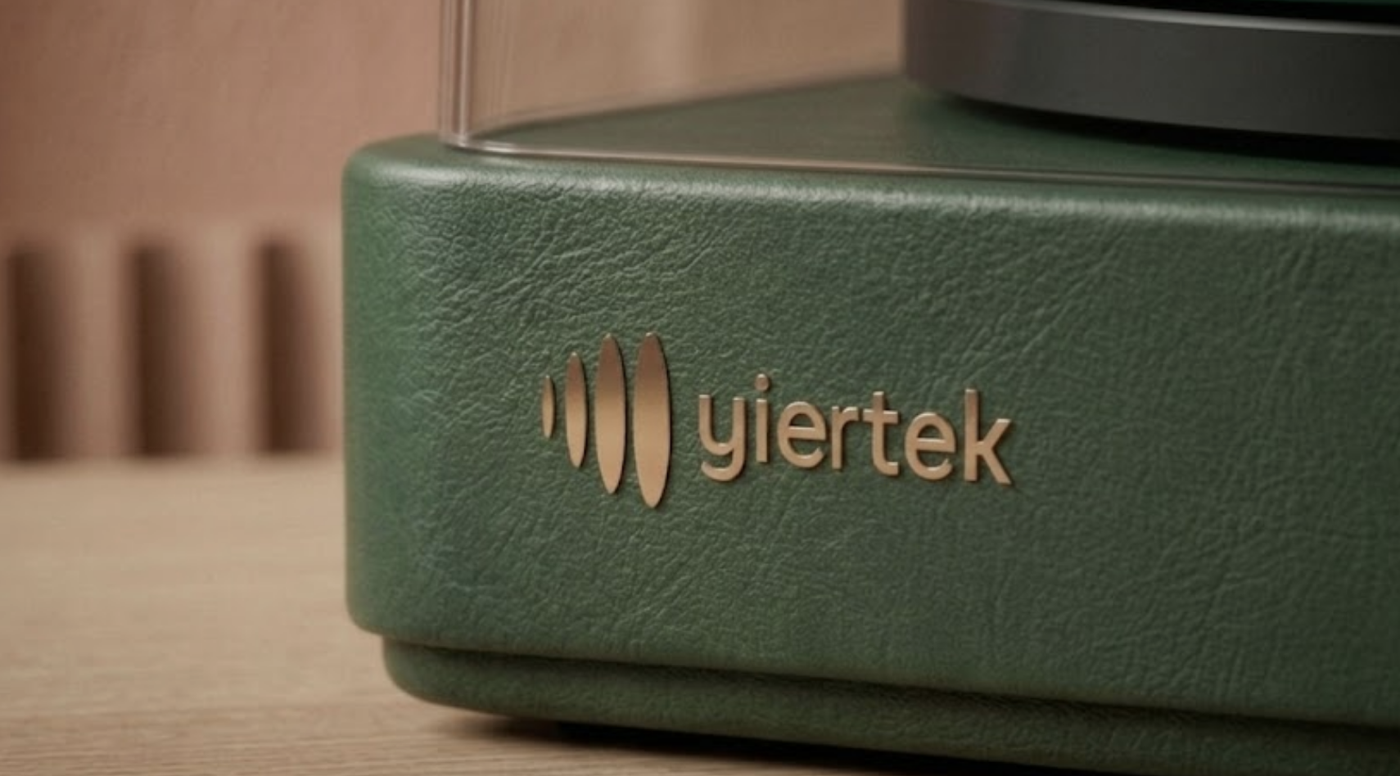

Heritage leather and foil debossed mark
Front-face foil deboss · Forest Green · 0.6 mm deboss正面烫金压印 · 森林绿 · 0.6mm 压痕

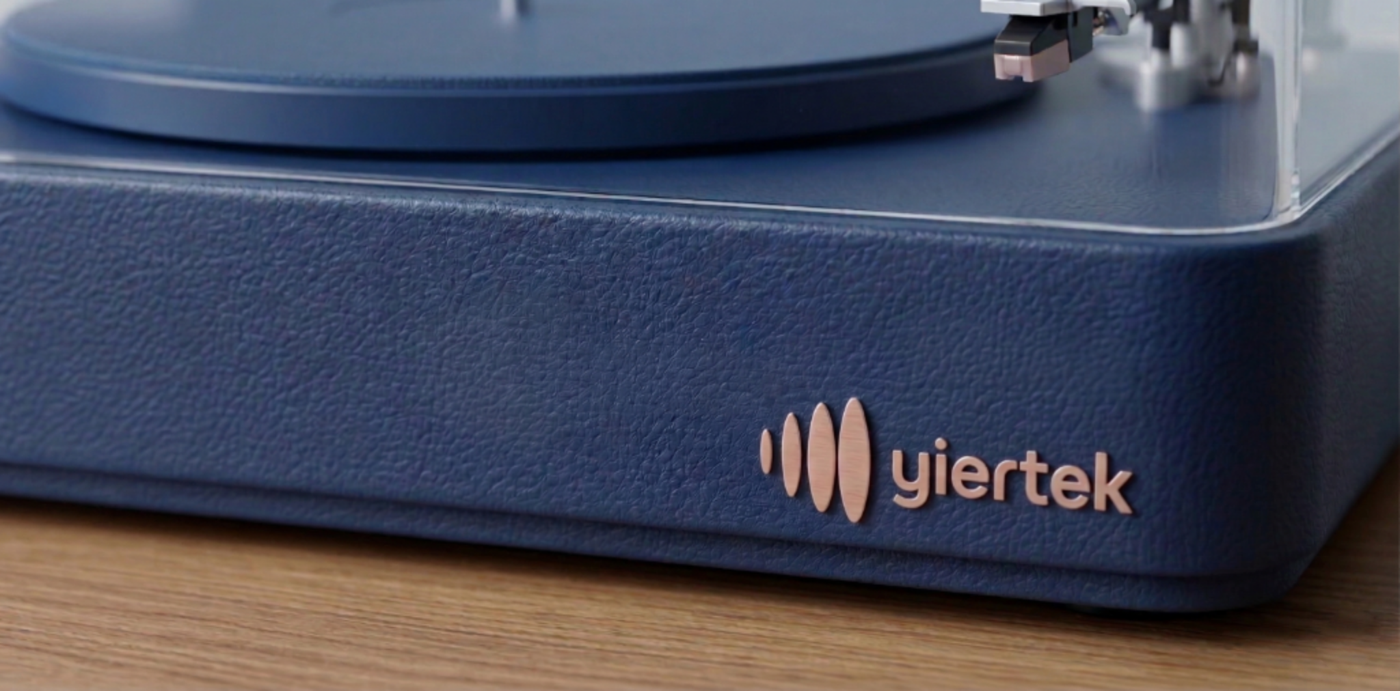

Heritage Deep Navy mark detail
Detail · Deep Navy · pebbled grain · saddle-stitch perimeter细节 · 深海军蓝 · 荔枝纹皮革 · 顶部马鞍式缝线
Structure & surfaces 结构与表面
Plinth core机座芯材
Mineral-cast composite (calcium-carbonate + acrylic resin), 18 mm wall. Vibration damping target: −24 dB @ 80 Hz vs ABS reference. 矿物铸造复合材料(碳酸钙 + 丙烯酸树脂),壁厚 18mm。振动阻尼目标:相对 ABS 参考样 80Hz 时降低 −24 dB。
Plinth wrap机座包覆
PU vegan leather, 1.1 mm pebbled grain, color-through. Adhesive: water-based polyurethane (PUR) hot-melt, 180 °C activation. No PVC, REACH SVHC-free. PU 素皮,1.1mm 荔枝纹,染色至芯。胶粘剂:水性聚氨酯 (PUR) 热熔胶,180°C 激活。不含 PVC,符合 REACH SVHC 标准。
Stitch缝线
Saddle-stitch perimeter, 6 mm in from top edge, 4.5 SPI, polyester #40 bonded thread in colorway-matching shade. Visible, structural. 马鞍式缝线,距顶边 6mm,针距 4.5 针/英寸,#40 涤纶包芯线,色调随配色匹配。可见且承力。
Edge radius边缘倒角
Outer corners R4 mm · top edge R2 mm · bottom 1 mm chamfer. 外角 R4 · 顶边 R2 · 底边 1mm 倒角。
Control knob控制旋钮
Single, centered on front face. Ø 28 mm × 18 mm. Aluminum 6061-T6, knurled rim 0.4 mm pitch diamond, anodized Copper Gold #C9A87C. Centre face: brushed Ra 0.4 µm circular grain. 单旋钮,正面中心位置。Ø 28mm × 18mm。6061-T6 铝合金,菱形滚花 0.4mm 间距,铜金色阳极氧化 #C9A87C。顶面:拉丝 Ra 0.4µm 圆形纹理。
Dust cover防尘罩
Cast PMMA acrylic, 3 mm wall, tint LT 78 % (smoke neutral). Stainless 304 hinges, satin bead-blast, screw-fix M3 × 6 cap-head black-zinc. 浇铸 PMMA 亚克力,壁厚 3mm,透光率 LT 78%(中性烟灰色)。304 不锈钢铰链,喷砂哑光,M3×6 黑锌帽头螺丝固定。
Slipmat唱片垫
Embossed PU leather mat, color-matched to plinth, 1.8 mm thk, Ø 295 mm, debossed crosshatch field. 压花 PU 皮革垫,颜色匹配机座,厚 1.8mm,Ø 295mm,压印十字网格纹。
Tonearm唱臂
S-curve aluminum tube, satin chrome, removable headshell (½″ universal mount). Counterweight: machined brass, blackened. S 型铝管唱臂,缎面镀铬,可拆卸唱头壳(½″ 通用接口)。配重:黄铜机加工,发黑处理。
Plinth size机座尺寸
360 × 270 × 78 mm (W × D × H, plinth only — dust cover adds 92 mm). 360 × 270 × 78 mm(宽 × 深 × 高,仅机座 — 加防尘罩共 92mm)。
Mass target重量目标
4.2 ± 0.2 kg. 4.2 ± 0.2 kg。

Heritage colorways Heritage 配色

Terracotta赤陶红

Warm clay-red, slightly cooled. Reads as Italian-pottery, not orange. Pairs with copper hardware at 70:30 color-to-metal ratio. 温暖的陶土红,略带冷调。视觉接近意大利陶器,而非橙色。与铜色五金件以 70:30 比例搭配。

Target hex目标 HEX
#A85A3E
Brand-doc hex品牌文档 HEX
#B87A5A
Pantone (PU)
7586 C ±2 ΔE
Gloss · 60° GU光泽 · 60° GU
Matte · 6 ± 2哑光 · 6 ± 2
Leather grain皮纹
Pebbled, 0.4 mm depth荔枝纹,深度 0.4mm
Stitch thread缝线
Madeira Aerolock 9870
Slipmat唱片垫
Color-match deboss同色压印
Hardware五金件
Copper Gold #C9A87C铜金色 #C9A87C
Deep Navy深海军蓝

Indigo-leaning navy with a subtle violet undertone. Reads as "not-black" in daylight while still working as a neutral against walnut and oak furniture. 略带紫调的靛蓝色海军蓝。日光下明显区别于黑色,同时与胡桃木、橡木家具保持中性搭配。

Target hex目标 HEX
#2D3E5A
Brand-doc hex品牌文档 HEX
#3D5A80
Pantone (PU)
5395 C ±2 ΔE
Gloss · 60° GU光泽 · 60° GU
Matte · 5 ± 2哑光 · 5 ± 2
Leather grain皮纹
Pebbled, 0.4 mm depth荔枝纹,深度 0.4mm
Stitch thread缝线
Madeira Aerolock 9930
Slipmat唱片垫
Color-match deboss同色压印
Hardware五金件
Copper Gold #C9A87C铜金色 #C9A87C
Mustard芥末黄

Render-corrected to a saturated ochre / mustard, not the desaturated sand value carried in the original brand-color spec. Image evidence is unambiguous; confirm before tool release. 依据渲染图修正为饱和的赭黄/芥末色,而非品牌色规范中的低饱和沙色。图像证据明确;开模前需确认。

Target hex目标 HEX
#D4A149
Brand-doc hex品牌文档 HEX
#C9A87C
Pantone (PU)
131 C ±2 ΔE
Gloss · 60° GU光泽 · 60° GU
Matte · 6 ± 2哑光 · 6 ± 2
Leather grain皮纹
Pebbled, 0.4 mm depth荔枝纹,深度 0.4mm
Stitch thread缝线
Madeira Aerolock 9740
Slipmat唱片垫
Color-match deboss同色压印
Hardware五金件
Copper Gold #C9A87C铜金色 #C9A87C
Forest Green森林绿

Cool deep pine, blue-shifted. Holds character under both warm 2700 K lamp light and daylight; pigment system must not shift toward olive under sun-exposed storage. 冷调深松绿,偏蓝。在 2700K 暖灯与日光下均保持原貌;颜料体系在日光暴晒下不得偏向橄榄色。

Target hex目标 HEX
#2D4A3A
Brand-doc hex品牌文档 HEX
#2D5A4A
Pantone (PU)
5605 C ±2 ΔE
Gloss · 60° GU光泽 · 60° GU
Matte · 5 ± 2哑光 · 5 ± 2
Leather grain皮纹
Pebbled, 0.4 mm depth荔枝纹,深度 0.4mm
Stitch thread缝线
Madeira Aerolock 9690
Slipmat唱片垫
Color-match deboss同色压印
Hardware五金件
Copper Gold #C9A87C铜金色 #C9A87C
02 · Artisan collection · MSRP $299–349 02 · Artisan 系列 · 建议零售价 $299–349

Artisan — solid American walnut, single natural finish Artisan — 实心美国黑胡桃木,单一原木涂装

A solid (not veneer) American black walnut plinth machined as a single block, with a CNC-routed dished platter recess. Finish is open-pore hardwax oil. Hardware reads as cool satin against the warm wood — a deliberate complementary contrast. 实心(非贴皮)美国黑胡桃木机座,单块木料 CNC 加工成型,唱盘区域 CNC 铣削碗形凹槽。涂装为开放孔硬蜡油。五金件以冷调缎面与暖色木材形成有意的互补对比。

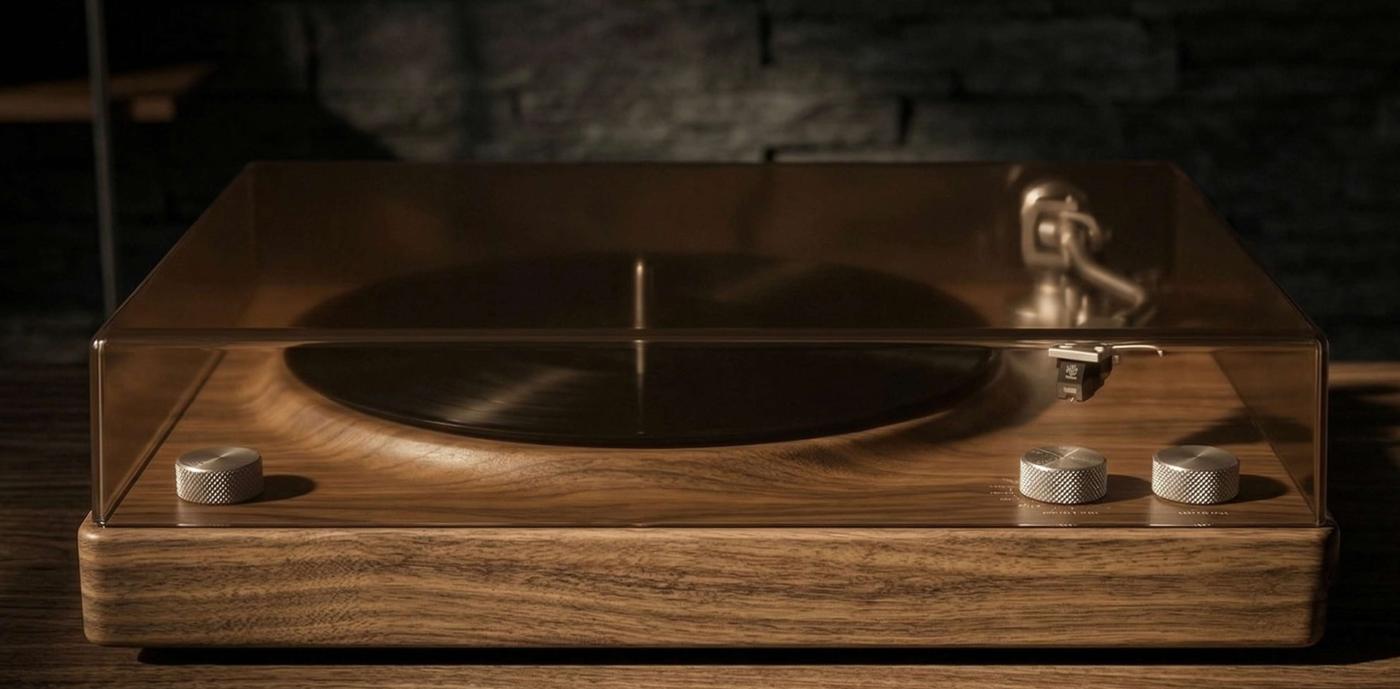

Artisan walnut turntable hero
Persona用户画像
Audiophile Lite · 30–50轻度发烧友 · 30–50 岁
Drive驱动
Belt (DC servo)皮带 (DC 伺服)
Cartridge唱头
Ortofon OM10
Operation操作
Manual cue手动起落

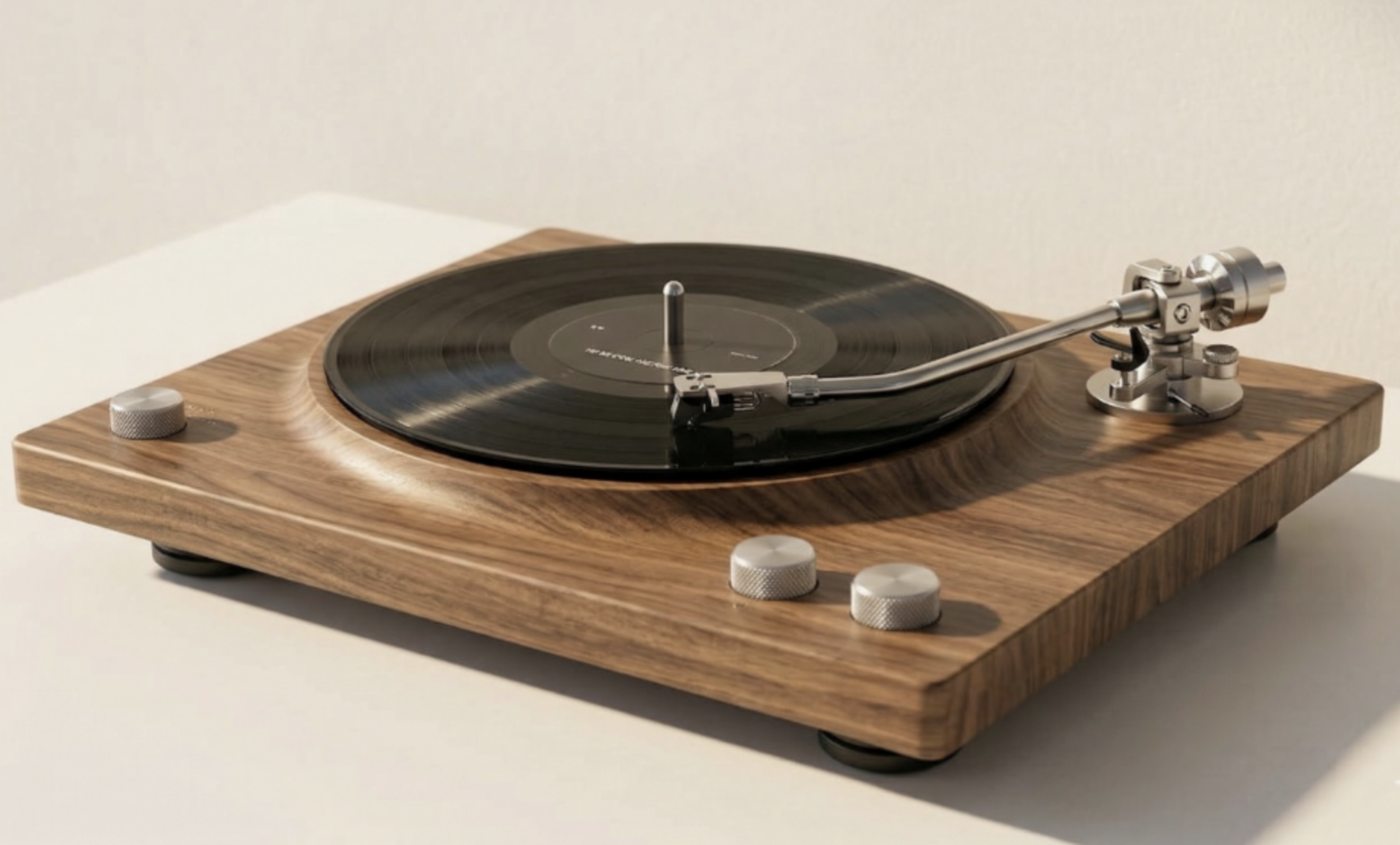

Walnut grain detail
Solid American black walnut · open-pore hardwax oil · grain unique per unit实心美国黑胡桃木 · 开放孔硬蜡油 · 每件木纹独一无二

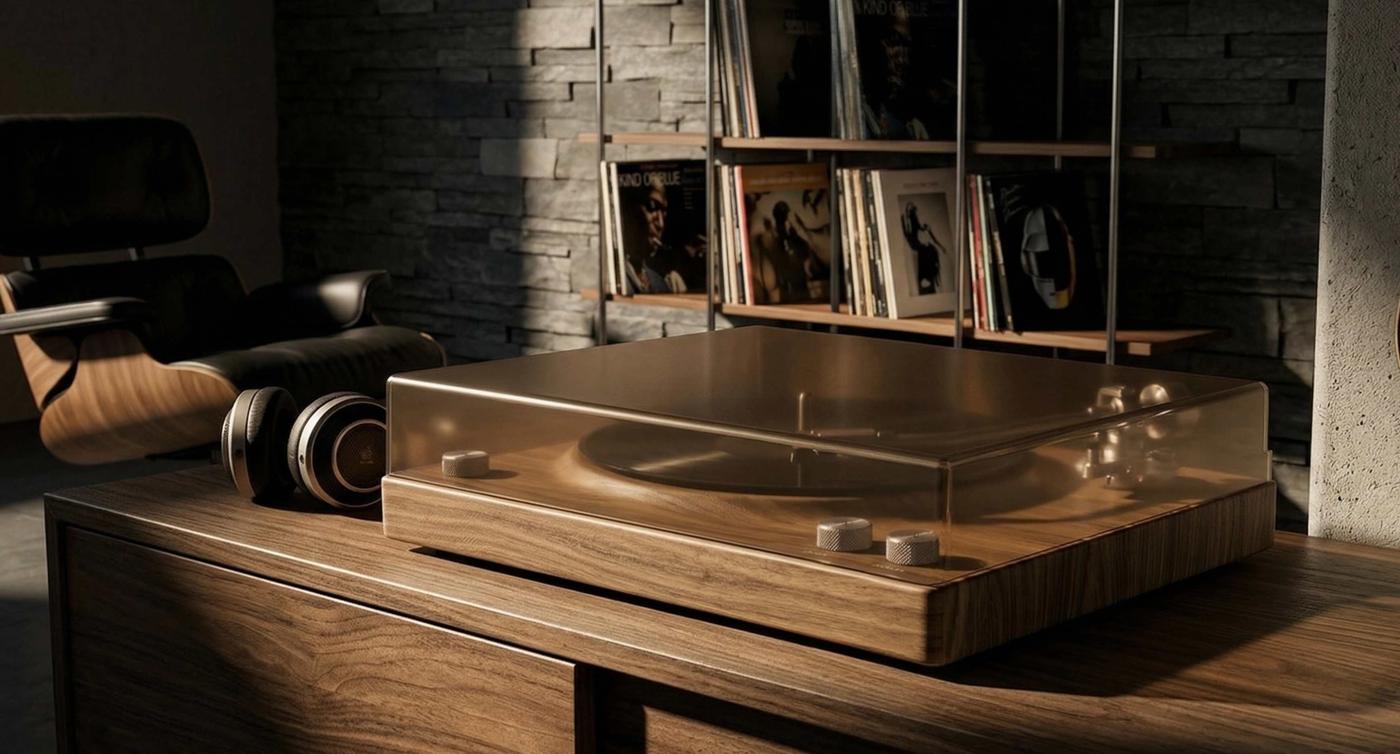

Artisan in living-room context
Cool satin hardware against warm walnut冷调缎面五金与暖色胡桃木对比
Structure & surfaces 结构与表面
Plinth机座
Solid American Black Walnut (Juglans nigra), FAS grade, kiln-dried 7–9 % MC, two-block book-matched glue-up across centerline. Minimum 40 mm thick. 实心美国黑胡桃木 (Juglans nigra),FAS 级,窑干至含水率 7–9%,沿中线对开拼板。最小厚度 40mm。
Plinth machining机座加工
CNC 3-axis · top dish recess Ø 312 mm × 4 mm deep · 1.5 mm chamfer to all upper edges · 15° bottom bevel on full perimeter (gives floating cue). 三轴 CNC · 顶面碗形凹槽 Ø 312mm 深 4mm · 上缘 1.5mm 倒角 · 底部全周 15° 斜切(营造悬浮视觉)。
Finish涂装
Hardwax oil, open-pore (Osmo Polyx 3032 or equivalent). 2 coats, 24 h cure between, hand-rag application. No film build. Top surface honed to 320 grit before finish. 硬蜡油,开放孔(Osmo Polyx 3032 或同等级)。2 涂层,每层间隔 24 小时固化,手工擦涂。无成膜。涂装前打磨至 320 目。
Grain selection木纹分级
Each plinth visually graded: reject excessive sapwood (≤ 5 % surface), reject grain that runs > 30° off long-axis on top surface. Acceptable: cathedral, straight, and curl — figured grain is a feature, not a defect. 每块机座目视分级:拒收边材过多者(表面 ≤ 5%)、顶面木纹偏离长轴 > 30° 者。可接受:大教堂纹、直纹、卷曲纹 — 花纹是特点,非缺陷。
Controls控制旋钮
Three front-face knurled aluminum knobs · Ø 22 mm × 14 mm · 6061-T6 · clear matte anodize (silver) · diamond knurl 0.5 mm pitch · brushed top face Ra 0.4 µm. 正面三颗滚花铝合金旋钮 · Ø 22mm × 14mm · 6061-T6 · 清色哑光阳极氧化(银色)· 菱形滚花 0.5mm 间距 · 顶面拉丝 Ra 0.4µm。
Control labels旋钮标识
Laser-engraved into plinth wood directly below each knob · 4 mm cap height · no infill (charred wood = label). 每颗旋钮正下方机座木料上激光雕刻 · 大写字高 4mm · 无填充(碳化木即为标识)。
Dust cover防尘罩
Cast PMMA acrylic, 4 mm wall, tint LT 62 % (bronze-warm — distinct from Heritage neutral smoke). Stainless 304 hinges, satin bead-blast. 浇铸 PMMA 亚克力,壁厚 4mm,透光率 LT 62%(暖青铜色 — 与 Heritage 中性烟灰色区分)。304 不锈钢铰链,喷砂哑光。
Tonearm唱臂
Precision aluminum S-curve · matte chrome plate · adjustable counterweight + anti-skate · integrated steel headshell · Ortofon OM10 pre-mounted, upgradeable to OM series. 精密铝制 S 型唱臂 · 哑光镀铬 · 可调配重 + 防滑装置 · 一体式钢质唱头壳 · 预装 Ortofon OM10,可升级至 OM 系列。
Platter唱盘
Die-cast aluminum, full 12″ · resonance-damped with butyl mat below felt slipmat · matte black powder RAL 9005, 5 GU. 压铸铝,全尺寸 12″ · 丁基橡胶垫消振,下置毛毡唱片垫 · 哑光黑色粉末涂装 RAL 9005,5 GU。
Slipmat唱片垫
Wool felt, 3 mm, natural undyed cream. No printing. 羊毛毡,3mm,原色未染米白色。无印刷。
Feet支脚
Four turned aluminum cylinders, Ø 22 × 18 mm, clear matte anodize, NBR rubber base puck 60 Shore-A, M6 stud-fix. 四颗车削铝制圆柱,Ø 22 × 18mm,清色哑光阳极氧化,NBR 橡胶底垫 60 邵氏 A,M6 螺柱固定。
Plinth size机座尺寸
420 × 320 × 90 mm (W × D × H, plinth only — dust cover adds 110 mm). 420 × 320 × 90 mm(宽 × 深 × 高,仅机座 — 加防尘罩共 110mm)。
Mass target重量目标
6.8 ± 0.3 kg. 6.8 ± 0.3 kg。
03 · Gravity collection · MSRP $349–399 03 · Gravity 系列 · 建议零售价 $349–399

Gravity — vertical hero, plus three chromatic horizontal variants Gravity — 立式主推款,外加三款彩色水平款

The brand presentation shows two distinct chassis architectures grouped under one collection name — both are specified here in full. Engineering must treat them as separate tooling programs sharing only the straight tonearm + red counterweight collar. 品牌展示在同一系列名下呈现两种截然不同的机身架构 — 本文件对两者均给出完整规范。工程上视为独立的开模项目,仅共享直管唱臂与红色配重环。

Discrepancy flagged差异说明 Brand copy describes Gravity as a vertical chassis (V-shaped walnut legs, dark oak veneer, matte black platter). Brand renders also show Gravity in three saturated chromatic colorways on a sculpted horizontal teardrop plinth. Resolution: ship both. Vertical is the Hero SKU; Chromatic is the colorway expansion. 品牌文案将 Gravity 描述为立式机身(V 型胡桃木腿、深橡木贴皮、哑光黑色唱盘)。品牌渲染图同时呈现三款饱和彩色配色的雕塑形水平水滴机座。处理方式:两者同时上市。立式作主推 SKU,彩色作配色扩展。

03A · Gravity Hero — Vertical chassis 03A · Gravity Hero — 立式机身

Gravity vertical chassis hero
Persona用户画像
Design Maximalist设计极简主义者
Drive驱动
Direct (brushless DC)直驱(无刷 DC)
Cartridge唱头
Ortofon OM
Footprint占地
12″ × 8″
Structure & surfaces结构与表面
Platter face唱盘面板
Vertical-oriented circular plate, Ø 305 mm. Matte black anodized aluminum, 4 mm thk, blasted finish 5 GU. Magnetic record-clamp at center hub. 垂直方向圆形面板,Ø 305mm。哑光黑色阳极氧化铝,厚 4mm,喷砂哑光 5 GU。中心配磁吸唱片夹。
Frame · disc surround框架 · 外圈
American walnut, curved D-shape lamination 4 ply × 3 mm bent veneer over solid core. Same hardwax-oil finish family as Artisan — shared sub-supplier intentional. 美国胡桃木,D 形弯曲层压 4 层 × 3mm 弯曲贴皮覆于实木芯。涂装与 Artisan 同属硬蜡油体系 — 有意共用供应商。
Tonearm唱臂
Straight-rod design (NOT S-curve). Front-mounted, exposed as the design hero. Matte chrome plate, integrated red-anodized counterweight collar. 直管设计(非 S 型)。前置安装,外露作为设计亮点。哑光镀铬,集成红色阳极氧化配重环。
Base · tripod底座 · 三脚架
V-splay: two walnut legs at front + single brushed-stainless rear foot. Combined three-point ground contact; non-resonant. V 形展开:前方两条胡桃木腿 + 后方一只拉丝不锈钢支脚。三点着地,无共振。
Drive驱动
Direct drive, brushless DC outrunner. Sensor-feedback speed lock ≤ 0.05 % WRMS. Vertical orientation requires axial-load bearing — sub-supplier per Drawing GRV-04-007. 直驱,外转无刷 DC。传感器反馈速度锁定 ≤ 0.05 % WRMS。立式方向需轴向负载轴承 — 供应商按图号 GRV-04-007。
Mass target重量目标
5.4 ± 0.2 kg · centre-of-gravity within base tripod footprint. 5.4 ± 0.2 kg · 重心位于底座三脚范围内。

03B · Gravity Chroma — horizontal sculpted plinth, three colorways 03B · Gravity Chroma — 雕塑形水平机座,三种配色

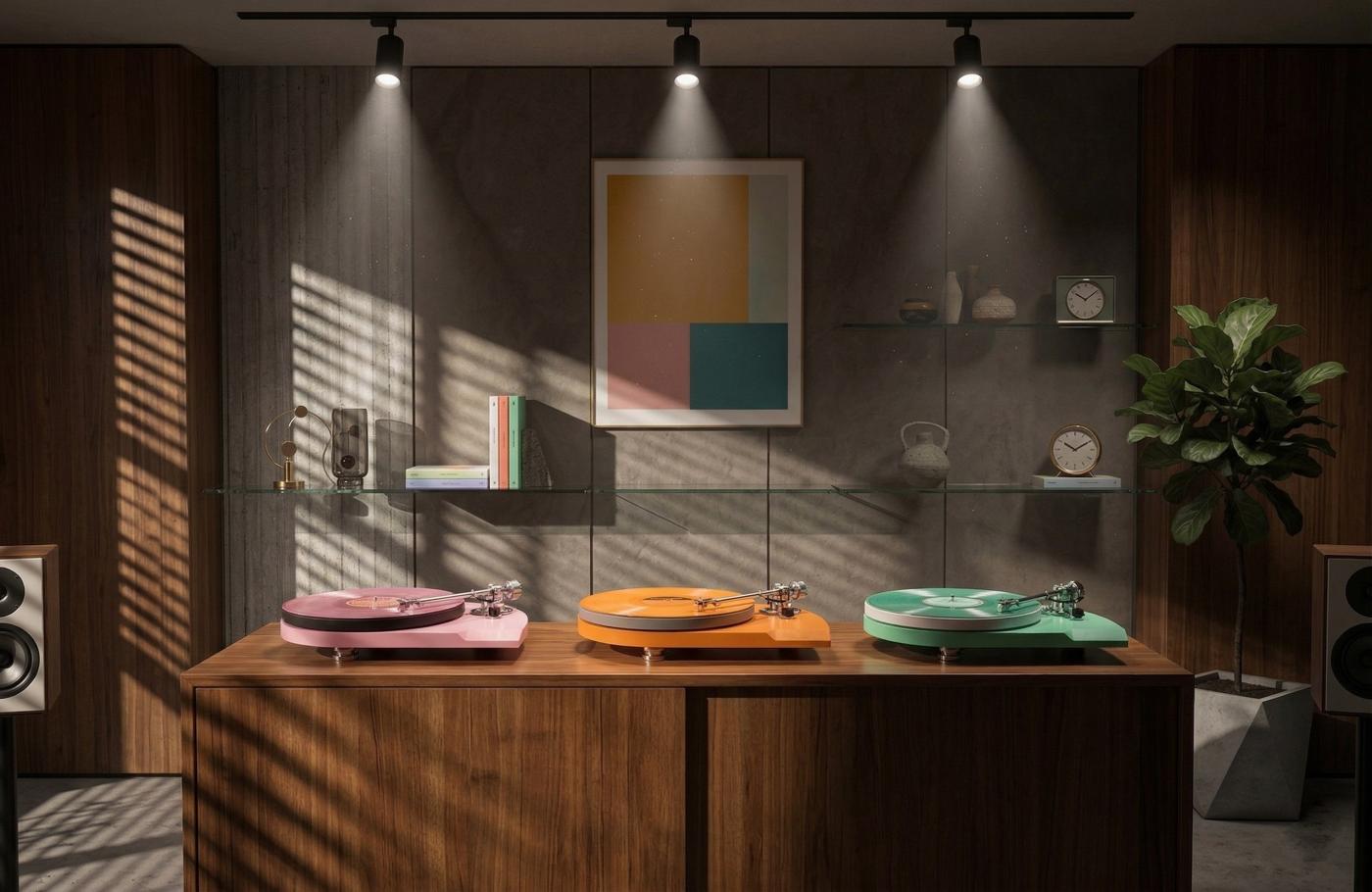

Gravity Chroma showroom — pink, tangerine, mint
Plinth机座
Sculpted MDF · lacquer雕塑 MDF · 漆面
Drive驱动
Belt皮带传动
Tonearm唱臂
Straight · red base直管 · 红色底座
Platter唱盘
Cast acrylic, color-matched浇铸亚克力,同色匹配

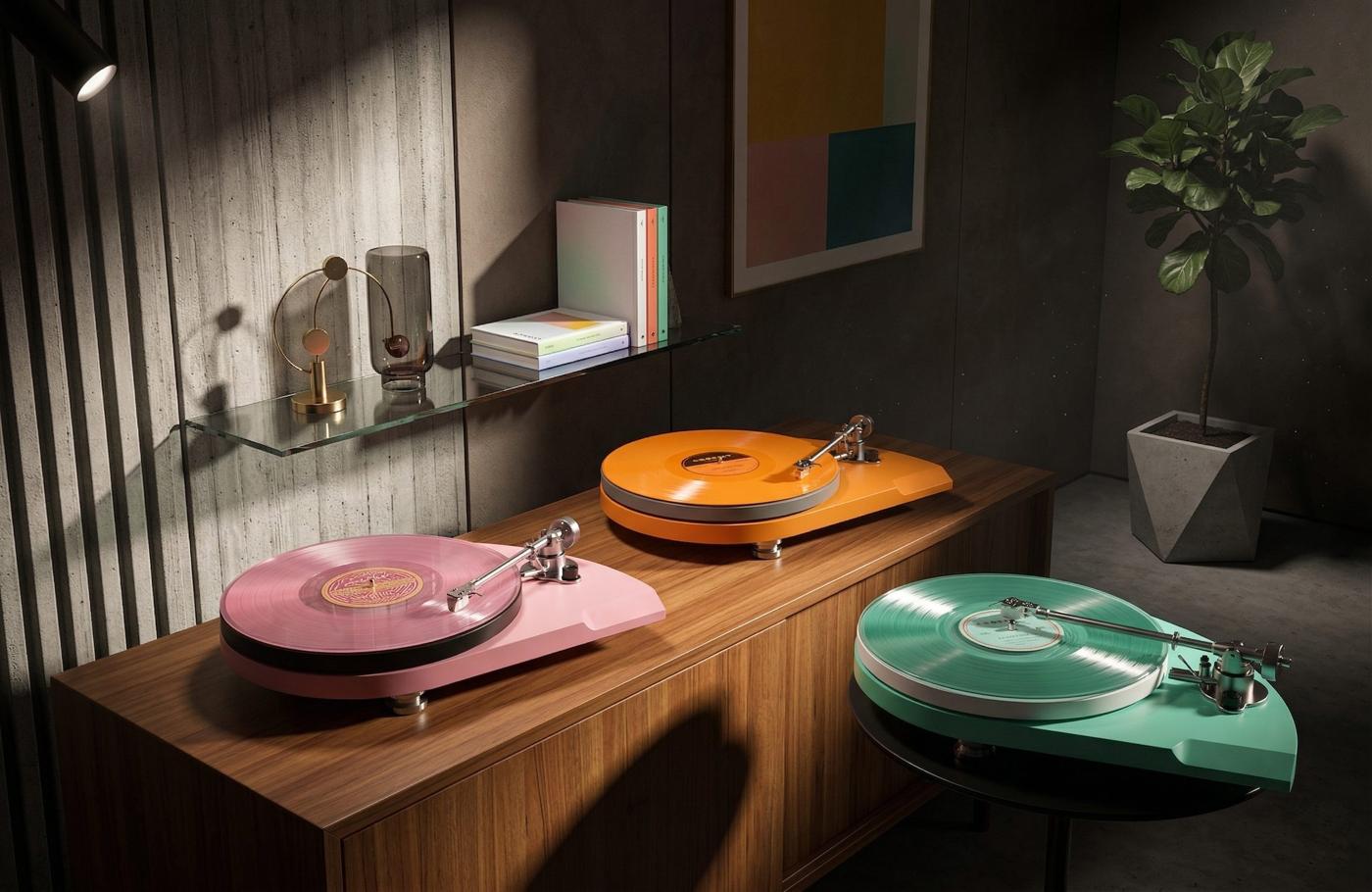

Gravity Chroma in domestic context
Trio in context · color-matched platter rotates within the same color object三款同框 · 同色唱盘在同色机身上旋转

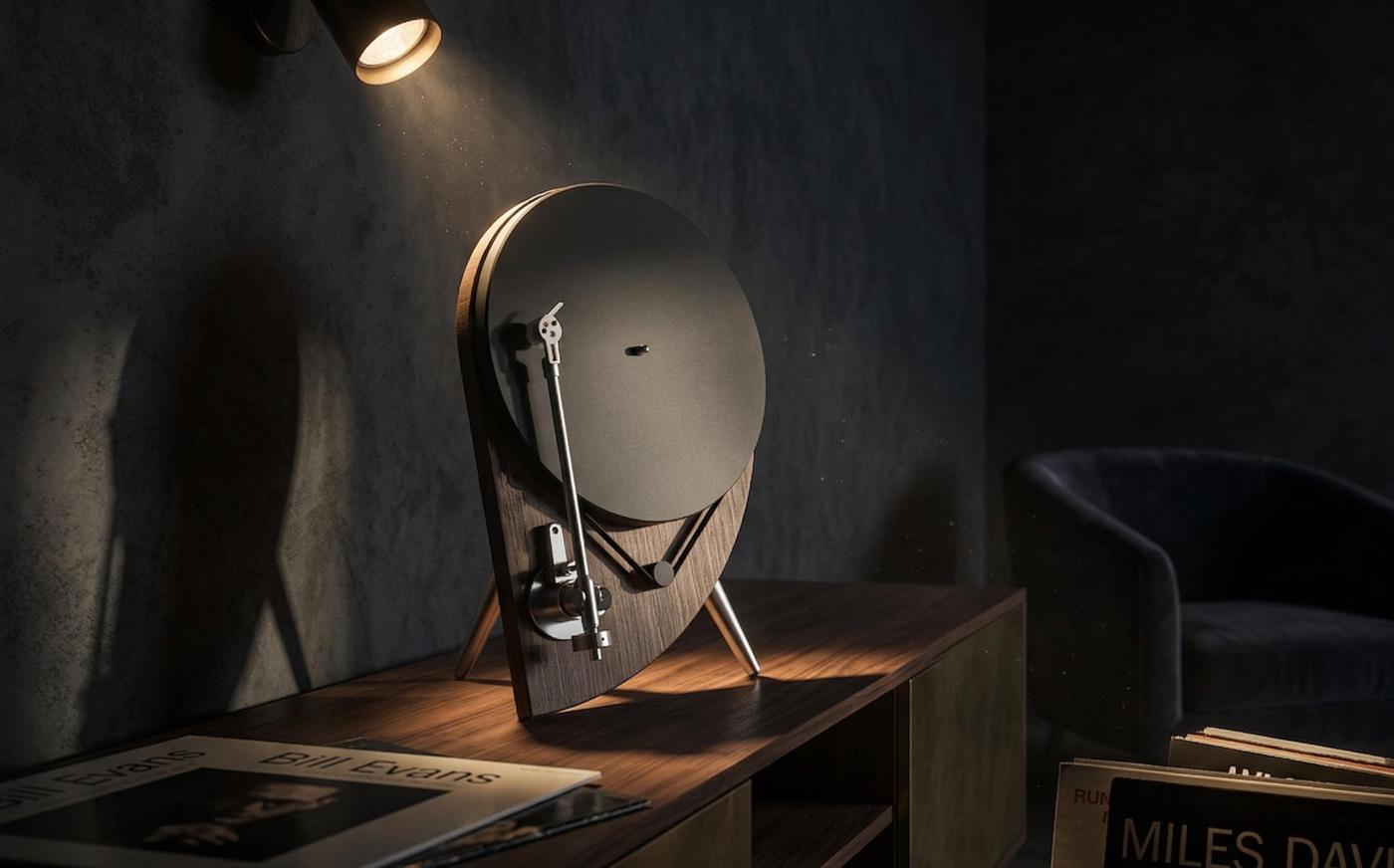

Vertical Hero reference
Reference · shared brand cues with Vertical Hero (red counterweight, straight arm)参考 · 与立式主推款共享品牌元素(红配重环、直管唱臂)
Structure & surfaces结构与表面
Plinth机座
MDF substrate 25 mm, CNC-shaped sculpted plinth with curved cutout following platter perimeter. Edges R3 mm. Density 750 kg/m³. MDF 基材 25mm,CNC 雕刻成型机座,外缘随唱盘弧线裁切。边缘 R3。密度 750 kg/m³。
Plinth finish机座漆面
Polyester high-gloss lacquer, 6-stage spray + flat-and-buff. 6 coats total · DFT 220–260 µm · gloss 90 ± 3 GU at 60° · DOI ≥ 92. 聚酯高光漆面,6 道喷涂 + 平磨抛光。共 6 层 · 干膜厚度 220–260µm · 60° 光泽度 90 ± 3 GU · DOI ≥ 92。
Platter唱盘
Cast acrylic, 30 mm thk, dyed in mass to match plinth color (not painted). Visible edge polished. Replaces felt slipmat. 浇铸亚克力,厚 30mm,整体染色匹配机座颜色(非喷涂)。可见边缘抛光。取代毛毡唱片垫。
Tonearm唱臂
Straight-rod, satin chrome, red-anodized counterweight collar (Pantone 199 C). Shared with Vertical Hero — same SKU. 直管,缎面镀铬,红色阳极氧化配重环 (Pantone 199 C)。与立式主推款共用 — 同一 SKU。
Feet支脚
Three button-cap feet, machined brass with clear-coat seal, Ø 28 × 12 mm, EPDM rubber base. 三颗按钮帽形支脚,机加工黄铜带清漆密封,Ø 28 × 12mm,EPDM 橡胶底。
Plinth size机座尺寸
410 × 310 × 60 mm (lower-profile than Heritage). 410 × 310 × 60 mm(比 Heritage 更低矮)。
Mass target重量目标
4.6 ± 0.2 kg. 4.6 ± 0.2 kg。

Gravity Chroma colorways Gravity Chroma 配色

Bubblegum Pink泡泡糖粉

Cool, slightly blue-shifted pink. The platter is dyed acrylic in the same color — when spinning, the entire instrument becomes a single color object. 冷调略偏蓝的粉色。唱盘为同色染色亚克力 — 旋转时整台机器成为单一色块对象。

Target hex目标 HEX
#E8A5B8
Brand-doc hex品牌文档 HEX
#E8A0B0
Pantone (PU)
2050 C ±1.5 ΔE
Gloss · 60° GU光泽 · 60° GU
High-gloss · 90 ± 3高光 · 90 ± 3
Plinth lacquer机座漆面
PE 6-stage spray聚酯 6 道喷涂
Platter唱盘
Cast acrylic, dyed浇铸亚克力,染色
Counterweight配重
Red anodize (PMS 199)红色阳极 (PMS 199)
Feet支脚
Brass clear-coat黄铜清漆
Tangerine蜜橘橙

Saturated warm satsuma. Sits across the color wheel from the Mint SKU — choose one OR the other in retail merchandising; never side-by-side. 饱和暖橙色。位于色环上 Mint SKU 的对侧 — 零售陈列时二选其一,切勿并列展示。

Target hex目标 HEX
#E89030
Brand-doc hex品牌文档 HEX
#F5A623
Pantone (PU)
1495 C ±1.5 ΔE
Gloss · 60° GU光泽 · 60° GU
High-gloss · 90 ± 3高光 · 90 ± 3
Plinth lacquer机座漆面
PE 6-stage spray聚酯 6 道喷涂
Platter唱盘
Cast acrylic, dyed浇铸亚克力,染色
Counterweight配重
Red anodize (PMS 199)红色阳极 (PMS 199)
Feet支脚
Brass clear-coat黄铜清漆
Seafoam Mint海沫薄荷绿

Cool seafoam with low yellow content; reads mid-century, not '50s pastel. Pigment system must resist UV-yellowing — specify HALS package. 低黄度的冷海沫色;目标质感为中世纪现代风,非 50 年代粉彩。颜料体系须抗 UV 黄变 — 指定 HALS 配方。

Target hex目标 HEX
#5FB89C
Brand-doc hex品牌文档 HEX
#7EC8B8
Pantone (PU)
7472 C ±1.5 ΔE
Gloss · 60° GU光泽 · 60° GU
High-gloss · 90 ± 3高光 · 90 ± 3
Plinth lacquer机座漆面
PE 6-stage spray + HALS聚酯 6 道喷涂 + HALS
Platter唱盘
Cast acrylic, dyed浇铸亚克力,染色
Counterweight配重
Red anodize (PMS 199)红色阳极 (PMS 199)
Feet支脚
Brass clear-coat黄铜清漆
Chroma color-controlChroma 色彩控制 Each chromatic SKU is the dyed plinth AND a dyed-acrylic platter that matches it ≤ 2 ΔE. Lacquer suppliers must master-batch both substrates from the same pigment lot to hold sub-spec drift; cross-vendor mixing is forbidden. 每个彩色 SKU 包含同色染色机座与同色染色亚克力唱盘,色差 ≤ 2 ΔE。漆面供应商须以同一批次颜料为两种基材调色,避免规格漂移;禁止跨供应商混色。
